Technical Specifications:
Woofer Size: 8”, midrange Size 4", Tweeter Size 2"
RMS Power handling:300 Watts per channel (150W - 300W RMS per channel is recommended)
Sensitivity: 97 db @ 2.83V
Frequency Response:48-40,000 hz
Motor Type: Internal NEO Magnet (TWEETER, MIDRANGE)
Voice Coil Type: Ultra-High Temp Single 4 ohm Coil
SYSTEM Impedance: 4 ohm nominal
Crossover Network: 3-way 24db/oct
for ACTIVE 3 way component setup use 2 amplifiers
Critical MASS 4CH amplifier model # ELS-1000.4 For active crossover set ELS-1000.4, front channels to 3Khz Hi-pass and connect to tweeters only. Set rear channels to 3Khz Lo-pass and connect to Woofers only. Critical MASS 2CH amplifier model # ELS-1000.2 For active crossover set ELS-1000.2, Band Pass Mode. set Hi Pass to 1Khz and set Lo Pass to 3Khz and connect to midranges only.
PRO-PERFORMANCE 4 OHM DESIGN:
This component kit is a PRO-Performance 8" Component kit made to use every watt from your 4 ohm stable amplifier
This set uses the best mix of Pro Audio and High-End Audio to deliver full bandwidth with high efficiency and true audiophile sound.
HYBRID CARBON FIBER CONE:
This cone is made of Lightweight pulp with Carbon/Kevlar fiber cap to withstand more than 1000 Watts of peak music power.
The hybrid Lightweight Cone increases rigidity, efficiency and clarity at all levels which ultimately means more, undistorted sound.

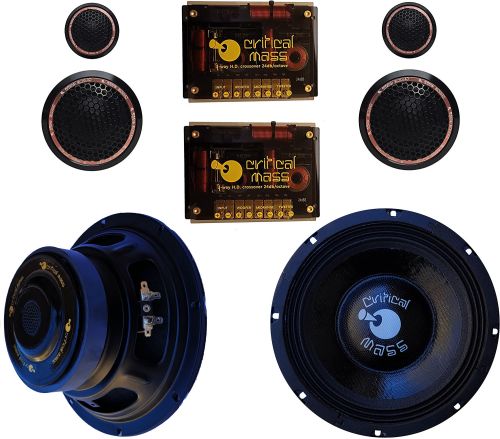

Included in this pro 3way 4 ohm kit:
- Two 8" Woofers
- Two 4" Midrange
- Two 2" Tweeters
- Two 24db/oct Crossover networks (3way)
