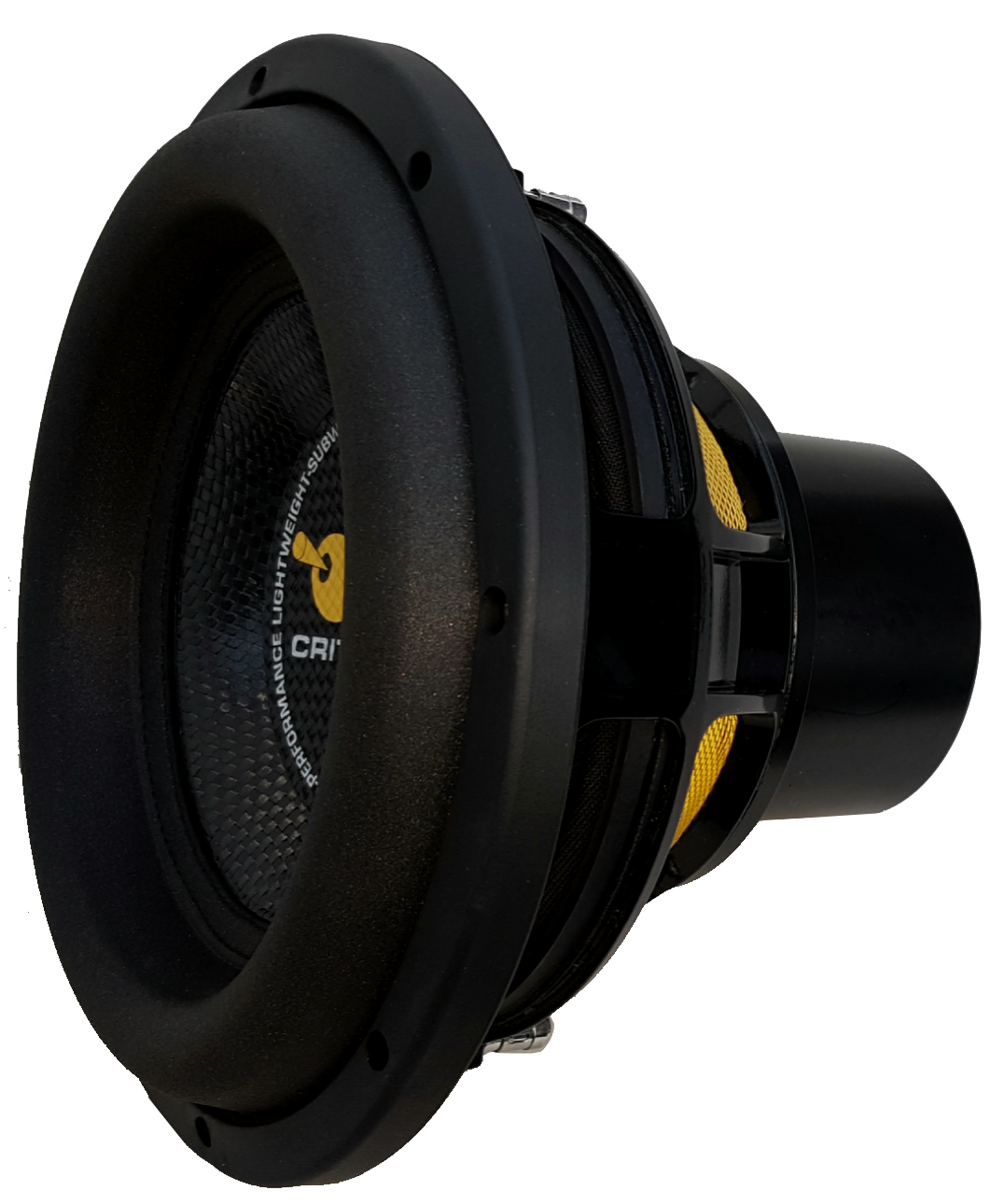

Critical Mass UL12

Tap for gallery

4.9 average, based on 7 reviews

$12,999.00


Product Information
Specification
Technical Specifications:                              BOX TECH NOTES


Subwoofer Size: 12”
RMS Power handling: 2500 Watts (undistorted power)
Peak Power handling: 5000 Watts
Recommended Box Volume: 1.2 cuft. (Sealed)
Weight: 16.6 lbs
Motor Type: Dual Gap / Internal NEO Magnet
Voice Coil Type: Ultra-High Temp Dual Coil (Made in the USA)
Voice Coil Diameter: 3”
Voice Coil Impedance: 1.5 ohm nominal per coil
Xmax (one-way linear excursion): 36 mm (3” peak-to-peak)
Maximum Excursion (one way): 46 mm (Almost 4” peak-to-peak)
Sensitivity: 96.7 db (2.83V / 1m) (coils in parallel)
Fs (Klipple-LSI): 31 Hz
Qts (Klipple-LSI): 0.81
Vas (Klipple-LSI): 47.7 Liters


ULTRA-PERFORMANCE LIGHTWEIGHT SUBWOOFER DESIGN:

This driver is the first Ultra-Performance Subwoofer to be made with the automotive
performance enthusiast in mind. At only 18 lbs, this subwoofer handles up-to 3
times more power, has a considerably higher linear and maximum excursion, and
audibly lower distortion, while weighing as much as 66% less than other Ultra-Performance
Subwoofer (woofers with an excursion capability of greater than 2.5”).
These subwoofers made by other companies can weigh as much as 55 lbs. On the
other hand, the Critical MASS Ultra-Performance Lightweight Subwoofer will not
only play louder and handle more power, but it will also play in a smaller box, and
therefore, can save you as much as 100 lbs from subwoofer system weight when
combined with the reduced weight of a smaller enclosure (based on two 12” subs).
A 100 lbs reduction in your system weight, translates to accelerations gains resulting
in up to 1/10th of a second off your 0-60 mph times, or as much as 1 car length
faster. So the next time you plan to invest $1000 on an exhaust system, keep in mind
that you may have already lost your expected performance gains, unless you are using
Critical MASS UL-Series subwoofers and speakers.

MMAG TECHNOLOGY:

Allows for much greater linear excursion and power handling than conventional
drivers. This Ultra-Performance Subwoofer utilizes the Dual Gap configuration of
the patented MMAG motor technology, which results in up to 2.5 times more X-max
than conventional motor designs.
Huge, radial slot vented, NEO motor structure. Utilizing the latest and best high temp,

high grade Neodymium-Iron-Born magnets, which generate up-to 20 times more magnetic energy
than conventional ceramic magnets of equivalent size. The radial slot vents keep the
motor running cool, enabling much greater power handling capability than conventional
Neo designs.

OSD TECHNOLOGY:

Up to 25% more air movement do to Oversized Sd technology as compared to other
drivers with comparable excursion capability. Combined with the X-max improvements
of the Dual Gap geometry, this subwoofer delivers over 200% more linear air
movement (more Bass) than conventional subwoofers with the same size voice coil.

HEAT-SINK BASKET TECHNOLOGY:

Utilizing a unique and efficient way of transferring heat, from the motor, to the basket
body, and then to the basket mounting flange. This Ultra-Performance Subwoofer
actually transfers the heat from inside the Box to the outside world by utilizing its
heat-sink fins on the face of the woofer’s mounting flange. Not only does this technology
allow for increased short-term power handling, but also for greater power
handling over long periods of time (many more hours than conventional designs).

CARBON FIBER SANDWICH CONE:

This cone is one of the only cones that will withstand 5000 Watts of peak music power.
The Lightweight Carbon Fiber Sandwich Cone increases rigidity, and therefore efficiency,
which ultimately means more, undistorted, car-shaking bass.

Product Code UL12
Condition New
Weight 25.000lb

Customer Reviews

Average Rating: 4.9

BEST SUB EVER

1 2 3 4 5
THIS SUB IS OUT OF THIS WORLD. MY BMW M3 IS NOW THE ULTIMATE SOUND MACHINE.... (Nov 27 2009, 14:40 PM)

The UL12 supersub

1 2 3 4 5
The best Subwoofer I have ever heard period. I've owned and listened to many high end subs in my day from almost all the top end manufacturers including morel , dynaudio, jl, adire audio, RE, Image dynamics,, just to name a few. The UL12 is in a class of its own. This subwoofer plays anything you throw at it withe ease and precision, but most amazing is how loud it gets without losing its SQ. Price tag is a bit high, but the term "you get what you pay for" applies here. (Apr 01 2009, 12:25 PM)

Best Subwoofer UL12

1 2 3 4 5
This speaker is the best sounding spl subwoofer i have ever heard. This SUB is perfect for sound quality "SQ" or "SPL". If you have the cash to buy this speaker, then do it. Nothing can compete with this, ''IT'S THE BEST''. (Jan 19 2009, 18:19 PM)

best subwoofer

1 2 3 4 5
this thing is an animal!!!! when you want it to move the earth, that is what it does. but when you need and want clean and clear sound there is nothing that comes even near this beast. (Oct 31 2008, 17:14 PM)

UL12

1 2 3 4 5
THIS SUB IS GREAT AND NOW MY 2004 WRX STI IS FASTER THAN EVER. THE BOX AND SUB ONLY 31.5 POUNDS. I HAD A JL BEFORE AND IT WAS 107 POUND FOR ONE 12'' AND THE BOX. TO TOP IT OFF, THIS ONE SOUNDS 10 TIMES BETTER. (May 28 2008, 17:28 PM)
