“CREATED BY AUDIOPHILES WITH AN EXTRAORDINARY PASSION FOR HIGH-FIDELITY”
Car Audio Magazine
TECHNICAL INFORMATION:
Max Power Handling : 400 W/ CHANNEL
RMS Power Handling : 400 W/ CHANNEL
X-Over Type : 24 db/oct

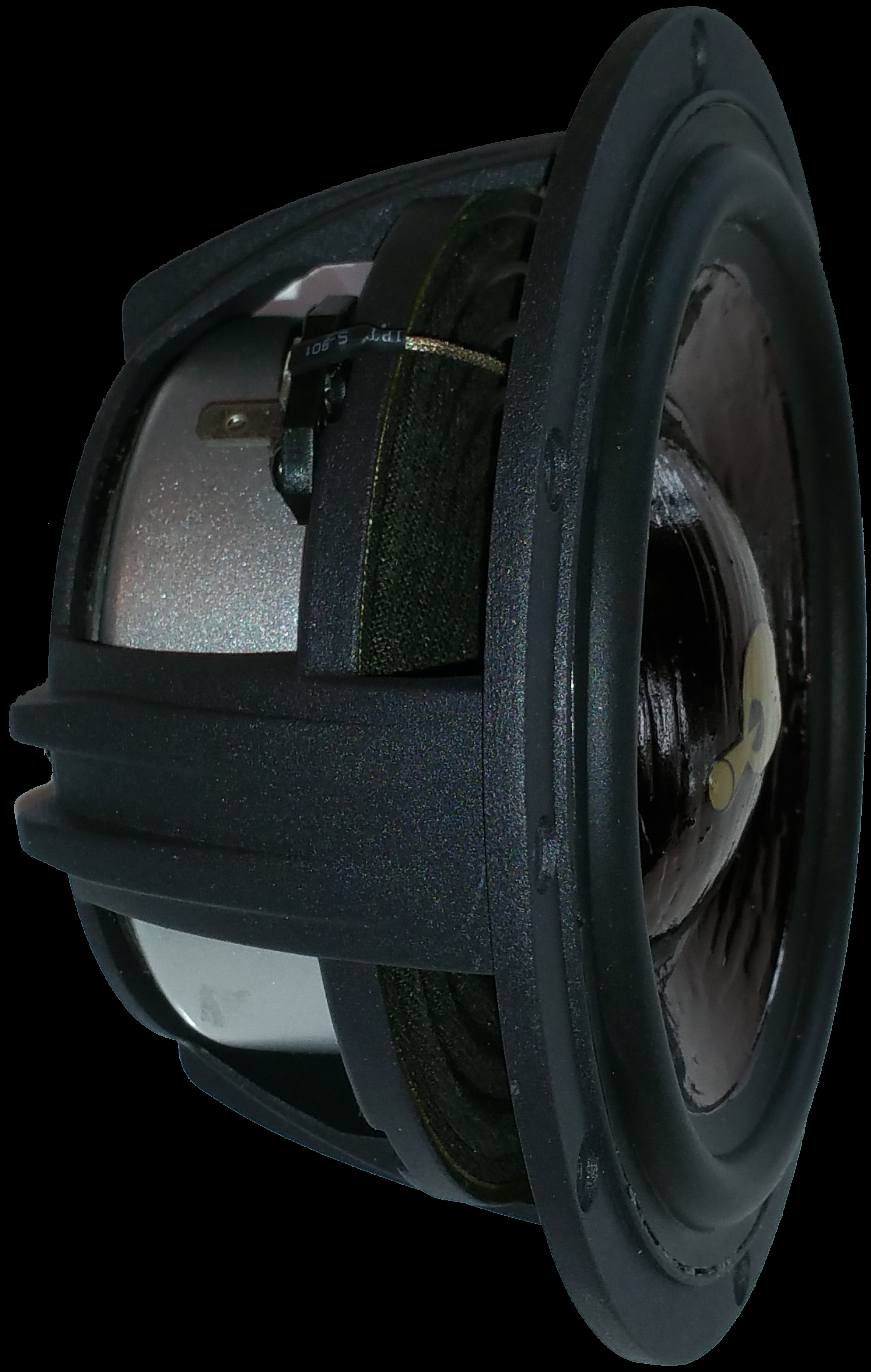

Speaker Size : 5.25"
Voice Coil : 1.65"
Fs : 40.6 Hz
db@1W/1M : 93 db
Motor : NEO-Hibrid
FEATURES :
Complete Audiophile Front-Stage Design:
Allows for instant Audiophile upgrade integration into any car audio system Installations.
Smart Hybrid Motor Design:
Hybrid Motor and Coil designs for increased cooling & power

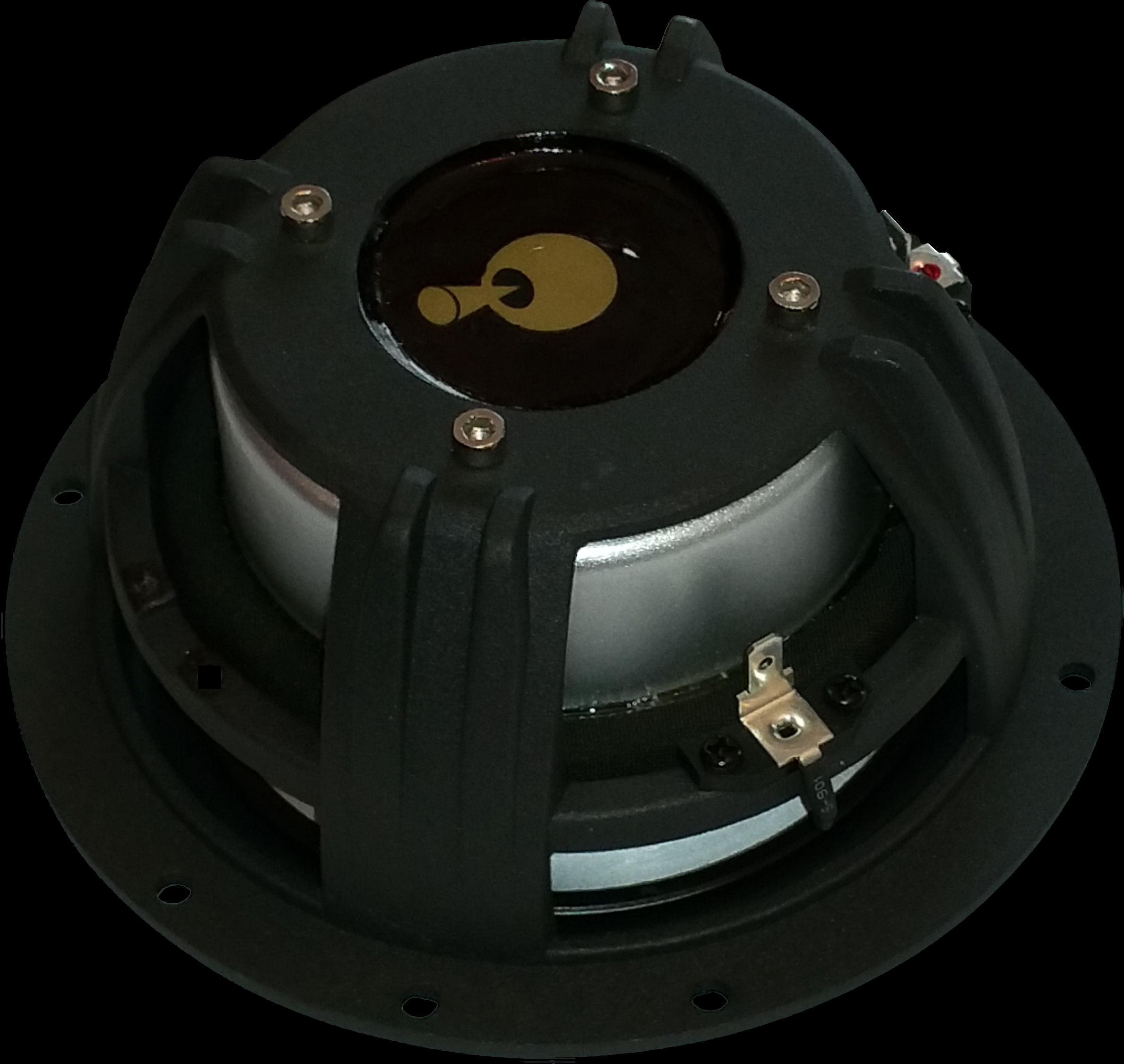

Huge NEO/Hybrid NEO Motor structure:
Up to 30 times more magnetic charge than standard magnets.
Efficient/Accurate/Huge 1.65" Multi Layer Voice Coil:
More than 4 times the power-handling of other Audiophile design Speakers.
Extra large threading:
Designed so they fit real wood panels from
Rolls-Royce
Bentley
Aston Martin
Individually Calibrated and Measured:
Suprior Linearity & sound quality at all audible frequencies .
24 db/oct Professional Grade w/ Hi-pass @ 1900Hz:
Allows for most accurate sound and absolute clarity at all power levels.
Bi-Ampable :
Allows the tweeter and woofer to be powered by separate amplifier channels or together.

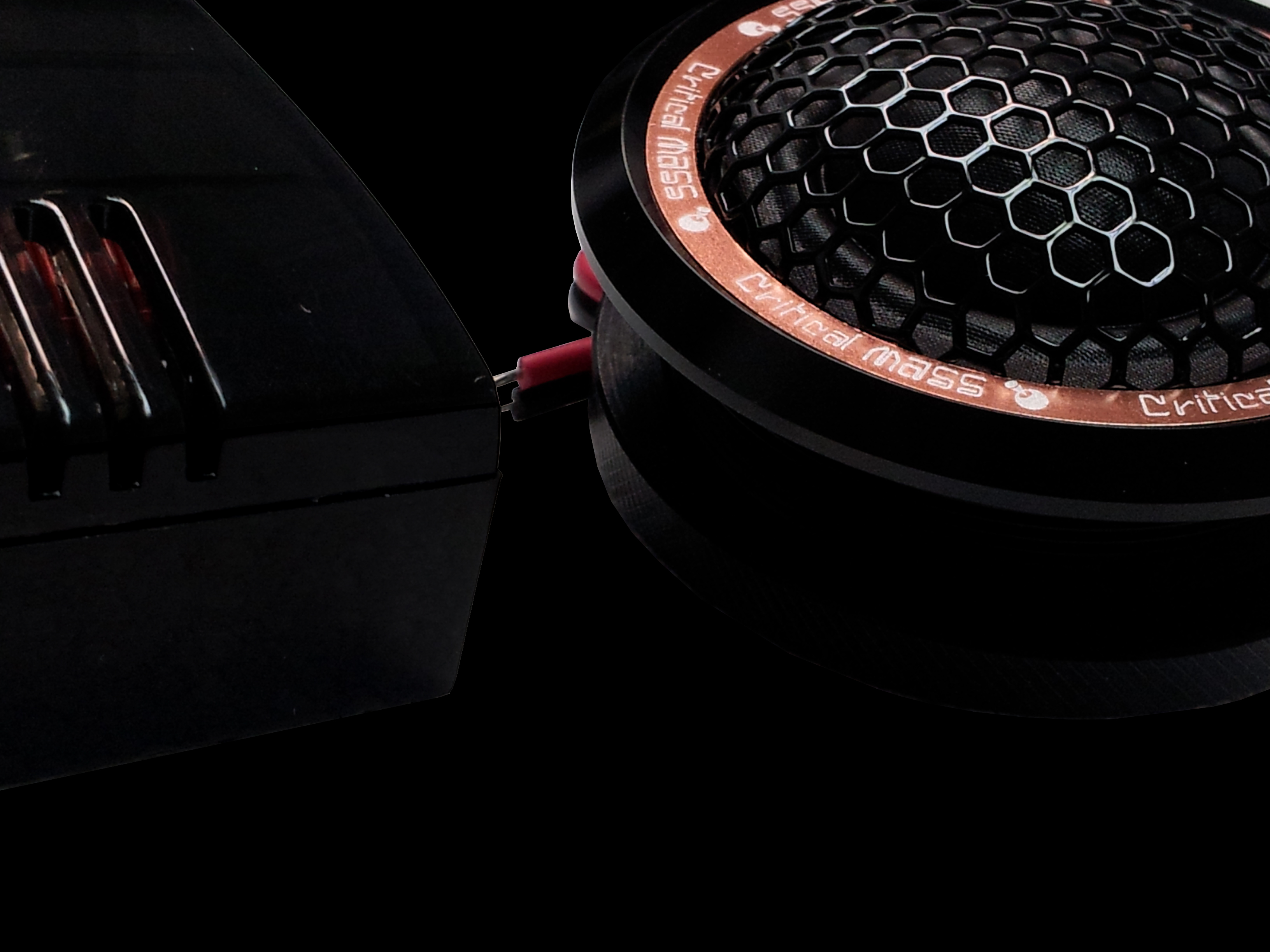

40mm Soft-dome tweeters:
Huge tweeter voice coil for truer sound.
AMPLIFIER SECTION
Specifications:
RMS power at 4 Ω Stereo 102w x 4 CH
RMS Power at 4 Ω Mono (Bridged) 408w x 2 CH
RMS Power at 2 Ω Stereo 204w x 4CH
High pass variable crossover
(0Hz~200Hz at 18 dB/OCT -1,2CH (Channels A)
High pass variable crossover
(50Hz~750Hz at 18 dB/OCT -3,4CH (Channels B)
Low pass variable crossover
(50Hz~750Hz at 18dB/OCT - 3,4CH (Channels B)
Max power 1000w @14.4V
T.H.D. 0.009%
Input sensitivity 200mV~8V
Input impedance 92K Ω
Damping factor >630
S/N Ratio 115db
Channel separation 110dB
S/N ratio 105dB
