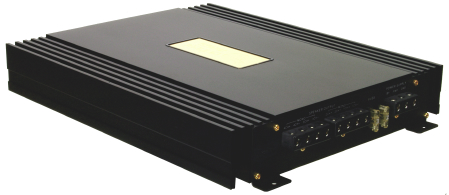

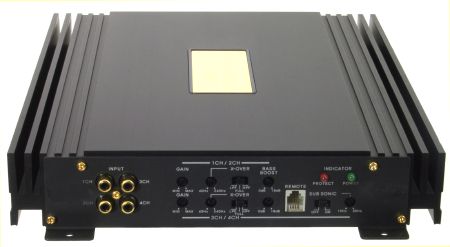

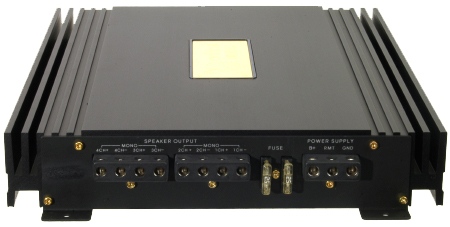

SS-A400 Amplifier DISCONTINUED 2010

Product Information

FEATURES:

• High  pass variable crossover (40 Hz~240Hz at 12 dB/OCT – 1,2,3,4CH
• Low pass variable crossover  (40Hz~240Hz at 12dB/OCT – 1,2,3,4CH
• Full range switch for 1,2,3,4CH
• Power on L.E.D.
• Protection indicator  L.E.D.
• Sub  sonic  filter 15~30Hz
• Sub  sonic functions ON - OFF
• Gain volume Min - Max
• Protection circuit for thermal, overload, DC reverse, DV   offset
• Remote for  subwoofer

SPECIFICATIONS:

• Frequency  response 15Hz~230Hz
• RMS power at  4OHM Stereo 75W x 4CH
• RMS Power at  4OHM  Mono (Bridged) 200W x 2CH
• RMS Power at  2OHM Stereo 100W x 4CH
• Max power 600W  @  14.4V
• T.H.D.  0.05%
• Input   sensitivity 200mV~4V
• Input  impedance 20K ohms
• Damping factor  >500
• S/N Ratio  105 db
• Channel  separation 90dB
